WIDE-BODY DUMP TRUCK

Truck

Wide-body Dump Trucks

Hyundai Wide Body Truck Solution not only is this truck equipped with a powerful engine, but it also delivers agile speed to enhance productivity and performance. Designed with efficiency in mind, it ensures exceptional fuel economy, ultimately reducing your operational costs. Moreover, it provides a comfortable driving experience for your operators, ensuring convenience and satisfaction during long hours of use. With its combination of power, efficiency, and operator comfort, the Hyundai Wide Body Truck stands out as the ultimate solution for your transportation needs.

Capacity: 30 - 35 ton

Model & Specifications

HDT90 - HDT105S

Model	Operating Weight	Engine Model	Emission	Rate Power	Rated Payload	Main Pumps Rated Flow	Fuel Tank	Hydraulic Tank	Travel speed (forward, Maximum)	Travel speed (Reverse, Maximum)	Overall length	Overall height	Overall width	Inner turning radius
HDT90	30 ton	WEICHAI 530 HORSE POWER	TIER 3	460hp/2,100 rpm	60 ton	220 ℓ/min	500 ℓ	200 ℓ	49 km/h	7.5 km/h	9,680 mm	3,770 mm	3,750 mm	9,500 mm
HDT90S	30 ton	WEICHAI 460 HORSE POWER	TIER 3	530hp/2,100 rpm	60 ton	250 ℓ/min	500 ℓ	200 ℓ	40 km/h	5 km/h	9,160 mm	3,770 mm	3,750 mm	7,550 mm

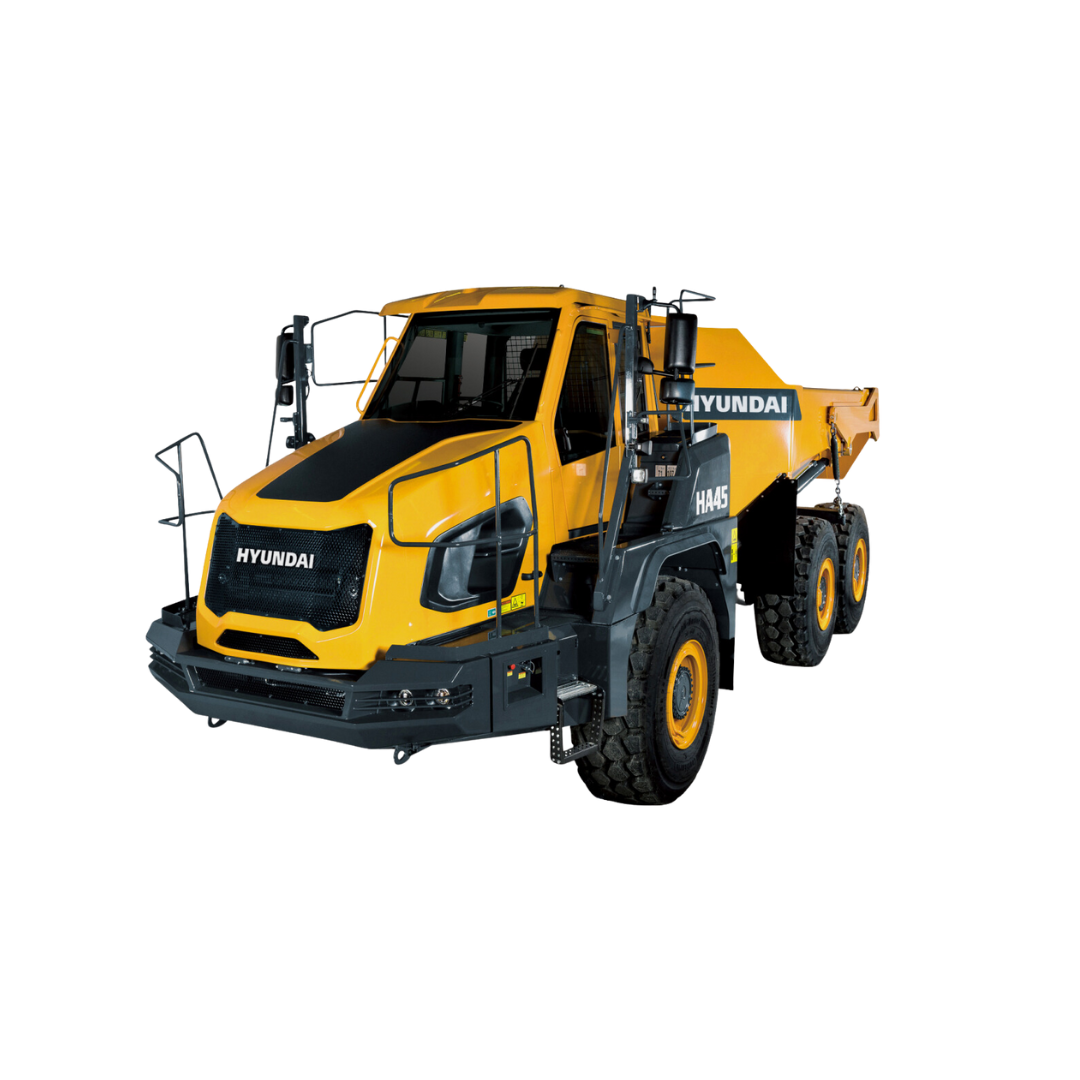

HA45	30,5 ton	SCANIA DC 13	TIER 4 FINAL	500 hp/2,100 rpm	41 ton	294 ℓ/min	530 ℓ	100 ℓ	55 km/h	17 km/h	10,673 mm	3,850 mm	3,990 mm	4,215 mm
HDT105	35 ton	WEICHAI 530 HORSE POWER	TIER 3	560hp/2,100 rpm	70 ton	250 ℓ/min	600 ℓ	200 ℓ	49 km/h	7.5 km/h	10,000 mm	4,150 mm	3,750 mm	9,500 mm
HDT105S	35 ton	WEICHAI 530 HORSE POWER	TIER 3	530hp/2,100 rpm	70 ton	250 ℓ/min	600 ℓ	200 ℓ	40 km/h	4 km/h	9,360 mm	4,160 mm	3,750 mm	8,000 mm
